STEALTH R2
The STEALTH R2 is a feature-packed high-output motorized fixture featuring hybrid beam & spot use with a wide 6°-28° zoom range. Projecting “pencil” beams or larger gobo shapes allow users to mix colors, layered gobos, and bi-directional rotating prisms to create spectacular effects & mid-air visuals. Ideal for production, theatre, and installation.
Features:
- Hybrid SPOT / BEAM Functionality
- 3 LED “Eye Candy” Ring-Light Visual Effects with Built-in Macros
- Wide Zoomable 6°-28° Beam Angle + Frost Diffusion Filter
- Layer Color, Gobos, and Prisms for spectacular mid-air visuals
- 3-Phase smooth motors for precise movements
Technical Specifications:
Movement:
- Pan 540°, Tilt 270°, 16-bit resolution
Light Source:
- Main: 250W white LED light engine
- Main Color temperature: 8000°K
- Rings: 135 x 0.3W RGB LEDs
Optics:
- Zoom Range: 6° to 28°
- Color Wheel: 9 Colors + Open
- Gobo Wheel 1: 9 metal static + Open
- Gobo Wheel 2: 7 glass rotating, indexable, and replaceable slot-n-lock + open
- Prism: 6/8-facet bi-directional rotating prism
- Dimmer: 0-100% Linear Dimmer, 16-bit resolution
- Strobe: 0-20 FPS
- Motorized Focus & Frost Filter
Control and Programming:
- DMX channels: 26/35
- Modes: DMX, RMD, Sound, Standalone, Master/Slave
Construction and Build:
- Housing colors: Black
- Color Graphic LCD display for addressing and function settings
- IP Rating: IP20

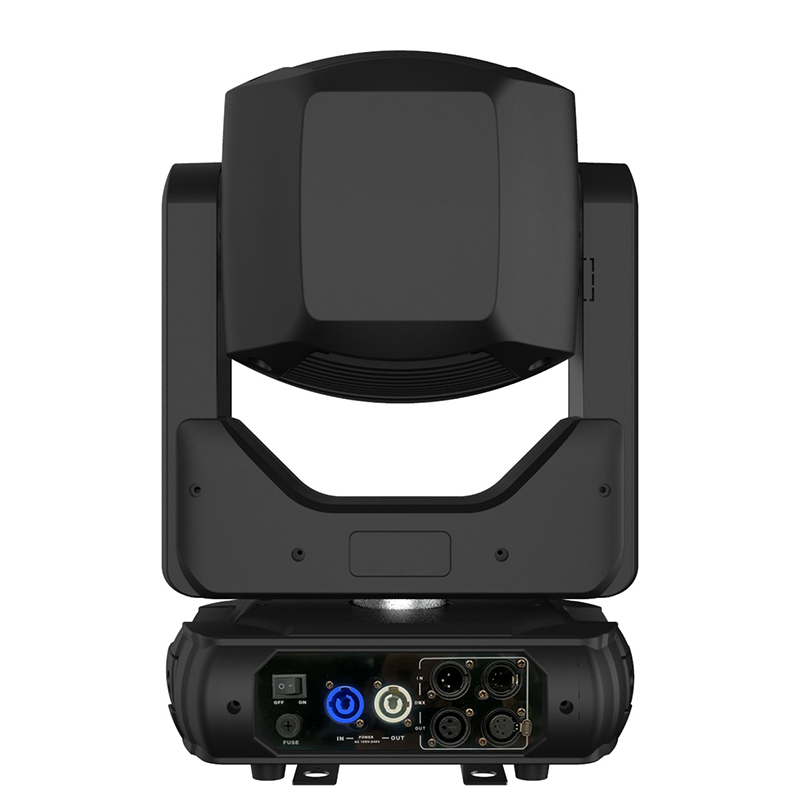

Connections:
- Data in/out: 3 & 5 Pin XLR M/F
- Power in/out: Seetronic Powercon
Power Specifications:
- Peak power consumption: 380VA
- Voltage: AC 100-240V, 50/60Hz
Physical Dimensions:
- Height: 538mm
- Width: 367mm
- Depth: 236mm
- Weight: 10 kg (22 Lbs)
Accessories:
- Mounting brackets included
Warranty:
- 2-year limited warranty on parts and labor
